| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Boto |
| Certification: | Iso |
| Model Number: | B-T-48L B-TH-48L |
| Minimum Order Quantity: | 1SET |
| Price: | negotiation |
| Packaging Details: | PLY-wooden case |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000set/year |
| Model Number: | B-T-107-C | Inter Dim: | 40X40X30 |
|---|---|---|---|
| External Dim: | 60X80X107 | Material: | SUS#304Stainless Steel Plate |
| Color: | White | Temp Range: | -60℃~150℃（100℃） |
| Relative Humidity: | 20%~98%RH | Power Source: | AC:220V 50/60Hz |
| Power: | 1.5KW-2.5KW | ||
| Highlight: | SUS304 Temperature Stability Chamber,98%RH Temperature Stability Chamber,48L Temperature Stability Chamber |
||
Temperature Humidity Stability Test Chamber Small Chamber
Product description
Small high and low temperature test chamber adopts tabletop design, small volume, does not occupy space. Touch type setting mode, completely by microcomputer automatic control lock, high precision, and has the PID value automatic calculation function. Temperature sensor failure, automatic detection, temperature and humidity reference point deviation, can be corrected by the program immediately. The internal wind pressure and wind speed of the testing machine meet the temperature and humidity testing standards, and the temperature uniformity is good.
Standards
Comply with MIL STD GB JIS JEDEC IEC ISO and other test specifications.
Use
Mainly used for national defense industry, aviation industry, automotive parts, electronic parts, plastic industry, food industry, pharmaceutical industry, and related products research and development, quality management engineering test specification.
Features
1. Small size, easy to carry, can be placed on the desk, suitable for research and development of small parts products.
2. Low power consumption (1.3KW), energy saving and consumption reduction.
3. Low noise, radiation bottom, green environmental protection.
4. High efficiency, the communication method adopts Qualcomm software F4 controller, and a variety of tests are completed at the same time.
5. Side test holes are installed on the left and right sides for easy operation.
6. The international famous brand imported compressor, refrigeration accessories, to ensure the stability of the refrigeration system.
7. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Spec
| Model | B-T-107-C | ||||||
| Internal Dim | 40X40X30 | ||||||
| External Dim(W*H*D) | 60X80X107 | ||||||
| Temp Range | -60℃~150℃(100℃) | ||||||
| A:0℃ B:-20℃ C:-40℃ D:-60℃ | |||||||
| Relative Humity(Only damp heat) | 20%~98%RH | ||||||
| Heat-up time(min) | About 3℃/min | ||||||
| Pull-down time(min) | About 1℃/min | ||||||
| Temp Fluctudtion | ±0.5℃ | ||||||
| Temp Uniformity | ±1.0℃ | ||||||
| Temp Deviation | ±1.0℃ | ||||||
| Power Source | AC:220V 50/60Hz | ||||||
| Power(KW) | 1KW~2KW | ||||||
Product details

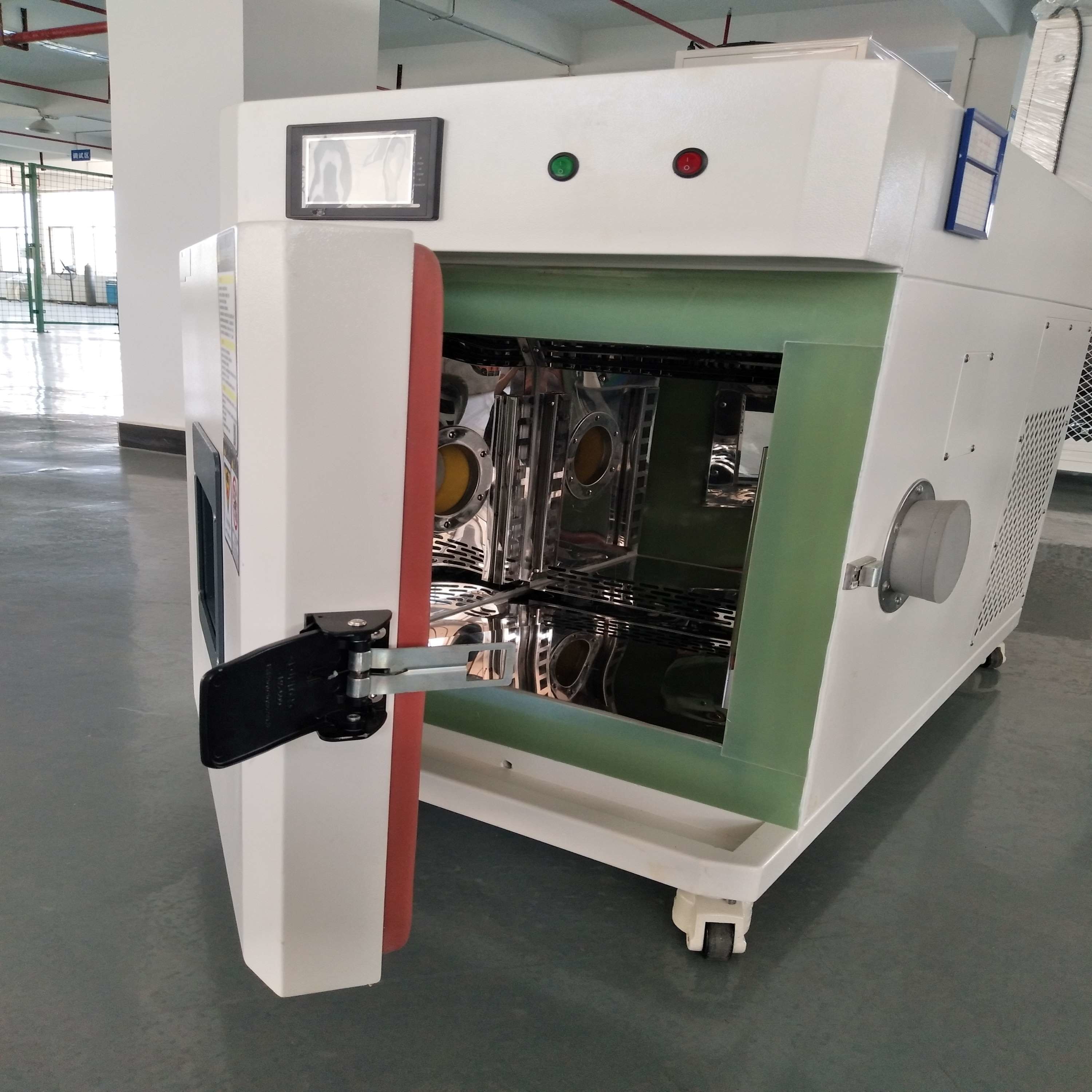

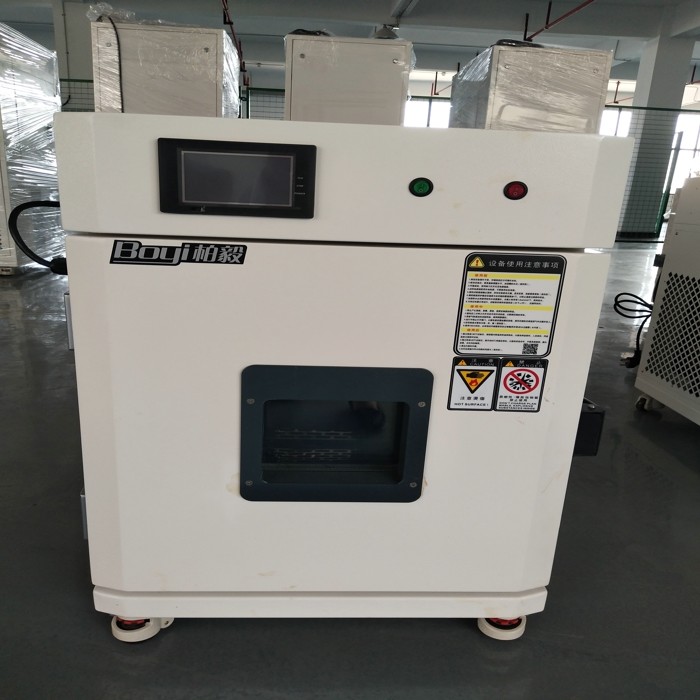

Structure show:
Beautiful appearance and generous, and the use of non - reaction handle, easy to operate.
The inside of the box is made of imported stainless steel SUS304 plate, and the outside of the box is made of A3 steel plate sprayed with plastic, which increases the appearance texture and cleanliness.
Large observation window with a lamp to keep the box bright, and the heating body embedded tempered glass, at any time clearly observe the situation inside the box.
The left side of the box is equipped with a test hole with a diameter of 50mm, which can be used for external test power cord or signal line.
Temperature control adopts imported touch-button instrument with simple operation and setting. With the function of P.I.D automatic calculation, the temperature change condition can be corrected immediately, so that the temperature control is more accurate and stable.
The refrigerating machine adopts French original "Taikang" fully enclosed compressor. Using unit or binary low temperature loop system design. Multi - wing fan strong air circulation, avoid any dead Angle, can make the temperature distribution in the test area uniform. Air circulation design, wind pressure, wind speed are in line with the test standards, and can make the instant temperature stability time fast. Completely independent system can improve efficiency, reduce test cost, increase life and reduce failure rate.
Workshop show
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time
technical service
ABOUT US
BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.
The policy the company adheres to:TODAY'S QUALITY IS THE MARKET FOR TOMORROW.
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Workshop Machine
Certification
TRADING PROCESS
Cooperative partners
Our Service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months
SERVICE :If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
ONSITE SERVICE: 1.Device installation; 2.Equipment Operation Technology training; 3.Equipment Calibration; 4.Daily maintenance maintenance of equipment
