Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine

Basic Information
Place of Origin: Shanghai,China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-6001
Minimum Order Quantity: 1set
Packaging Details: standard wooden case
Delivery Time: 7-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500per month
POWER: Electronic Inside Box Size(cm): 60*45*40 / Customized
Brine Temperature: 35℃±1℃ 50℃±1℃ Testing Room Temperature: Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Brine Tank Capacity: >15L / Customized PH: 6.5~7.2 3.0~3.2
Outside Box Size(cm): 107*60*118 / Customized Testing Room Capacity: 60,120,270,480L / Customized
Air Pressure: 1.00±0.01kgf/cm2
High Light:

Programmable Corrosion Test Machine

,

480L Salt Spray Corrosion Test Machine

,

CCT Salt Spray Corrosion Test Machine

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine

Product Description

Equipment summary:

Salt Spray Corrosion Chamber used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.



Corresponding standard :

1. GB/T 2423.17-1993 salt spray test

2. GB/T 2423.18-2000 salt spray test

3. GB/T 10125-1997 salt spray test

4. ASTM.B117-97 salt spray test

5. JIS H8502 salt spray test

6. IEC68-2-11 salt spray test

7. IEC68-2-52 1996 salt spray test

8. GB.10587-89 salt spray test

9. CNS.4158 salt spray test

10. CNS.4159 CASS Accelerated acetic acid copper salt spray test

11.. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

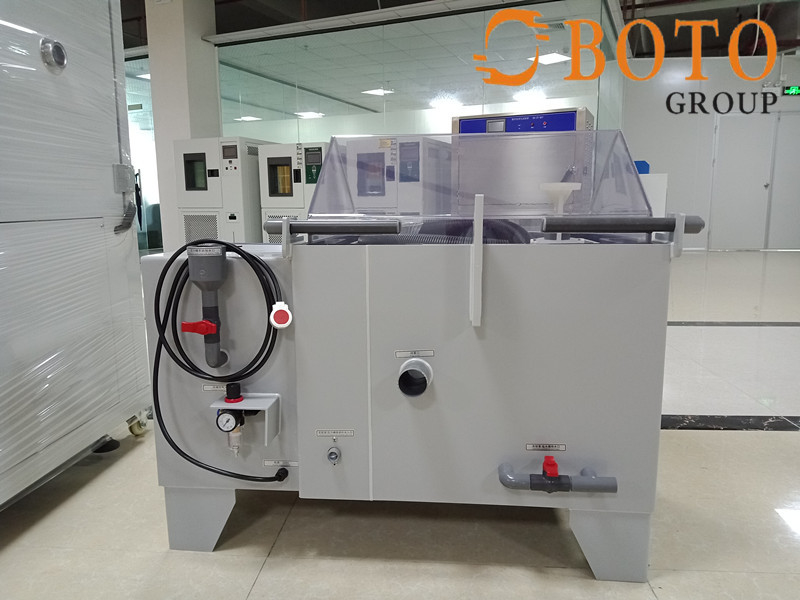

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 0

Technical parameters:

Model BT-6001C BT-6001B BT-6001A
Inside box size(cm) 60x45x40 90x60x50 120x80x50
Outside box size(cm) 107x60x118 141x88x128 190x110x140
Testing room temperature Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature 35℃±1℃ 50℃±1℃
Testing room Capacity 108L 270L 480L
Brine tank capacity 15L 25L 40L
Salt concentration The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (Including continuous and intermittent spray)
power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A


Detailed configurations as follows:

1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control

(A) Salt spray test: NSS, ACSS

1. testing room : 35 ℃ ± 1 ℃

2 saturated air barrels : 47 ℃ ± 1 ℃

(B) anti-corrosion test: CASS (copper acetate)

1. testing room: 50 ℃ ± 1 ℃

2 saturated air barrels: 63 ℃ ± 1 ℃

2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).

(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.

(B) Testing configuration is switch connector designed for SO2.



3, spray form:

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.

(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.

(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).



4, heating devices:

By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).



5, add water systems:

Using automatic water replenishment system, automatic replenishment when the water level is too low.



6, safe protective device:

(A) low water level, automatically cut off power supply.

(B) over-temperature, automatic cut off the power supply.

(C) attached to the safe warning light device.



Production Process

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 1

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 2

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 3

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

Workshop Machine

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 4



Packing&Shipping

Programmable Saline Solution Fog Cyclic CCT Salt Spray Corrosion Test Machine 5

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
