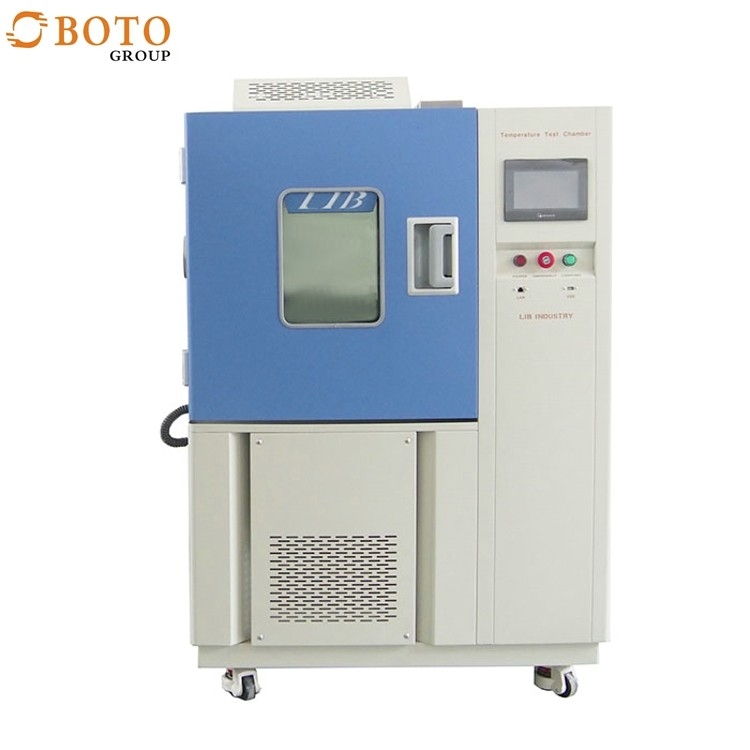

-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-T-100
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days,urgen order can be negotiated.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Unit/Units per Month
Application:: Battery,Storage Battery,EV,HEV Low Type:: A: -40℃ B:-70℃ C -86℃
Power:: Electronic Temperature Range:: -20℃ ~+150 ℃
Temperature Fluctuations:: ± 0.5 ℃ Heating Rate:: 3 ℃ / Min
Cable:: 1 Cable Hole / Power Supply Controller:: Programmable Color LCD Touch Screen Controller
Test Standard:: IEC 62660-2 Cooling Rate:: 1 ℃ / Min
High Light:

HEV Thermal Cycle Test Chamber

,

Programmable Thermal Cycle Test Chamber

,

LCD Thermal Cycle Test Chamber

-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber



IEC 62660-2 Standard Battery Test
This test is performed to characterize thermal durability of a cell by exposing at a low and high temperature environment alternately to cause expansion and contraction of cell components.

Technical Parameters


Name
BT-T-100 Programmable IEC Battery -40 Degree Cell Thermal Test Chamber
Model
BT-TH-100
BT-TH-225
Internal Dimension (mm)
400*500*500
500*600*750
Overall Dimension (mm)
860*1050*1620
960*1150*1860
Interior Volume
100L
225L
Low type
A: -40℃ B:-70℃ C -86℃
Temperature Range
-20℃ ~+150 ℃
Temperature Fluctuation
± 0.5 ℃
Temperature Deviation
± 2.0 ℃
Cooling Rate
1 ℃ / min
Heating Rate
3 ℃ / min
Refrigerant
R404A, R23
Controller
Programmable color LCD touch screen controller
Temperature Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50Hz
Maximum Noise
65 dBA
Environmental Conditional
5℃~+35 ℃ ≤85% RH



IEC 62660-2 Test Standard Temperature Test Chamber


-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber 0

Thermal Test

a) Adjust the SOC of the cell to 100% for BEV application, and to 80% for HEV application.
b) The cell, stabilized at room temperature, shall be placed in a gravity or circulating air-convection oven. The oven temperature shall be raised at a rate of 5K/min to a temperature of 130℃±2K. The cell shall remain at this temperature for 30 min before the test is discontinued.
-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber 1

Temperature Cycling

a) Adjust the SOC of the cell to 100% for BEV application, and to 80% for HEV application.
b) Perform the temperature cycling in accordance with ISO 16750-4 as shown in Table 4 the minimum operating temperature shall be -40℃ or Tmin specified by the cell manufacturer and the maximum operating temperature shall be 85℃ or Tmax specified by the cell manufacturer. Perform 30 test cycles as specified.

Detail Design


-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber 2

Test Area

1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.
-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber 3

Cable Hole

1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size
-40 Degree Fast Temperature Change Rate Thermal Cycle Test Chamber 4

Controller

1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available




Advantage
1.Multiple model:T-100,T-225,T-500,T-800,T-1000 2.Testing small and large test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4. 72 hours commissioning before delivery to ensure product performance
