| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-504(A~E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000PC/Month |
| Name: | Programmable High Temperature Chamber | Model: | B-T-504(A~E) |
|---|---|---|---|
| Heat-up Time: | About3~5℃/min | Interior: | SUS#304Stainless Steel Plate |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | Internal Dim: | 45x60x45 |
| Power Source: | AV：220V/380V 50/60Hz | Relative Humidity: | 20%~98%RH |
| High Light: | Programmable High Temperature Chamber B-T-504,SUS304 High Temperature Test Chamber,Aerospace High Temperature Chamber |
||

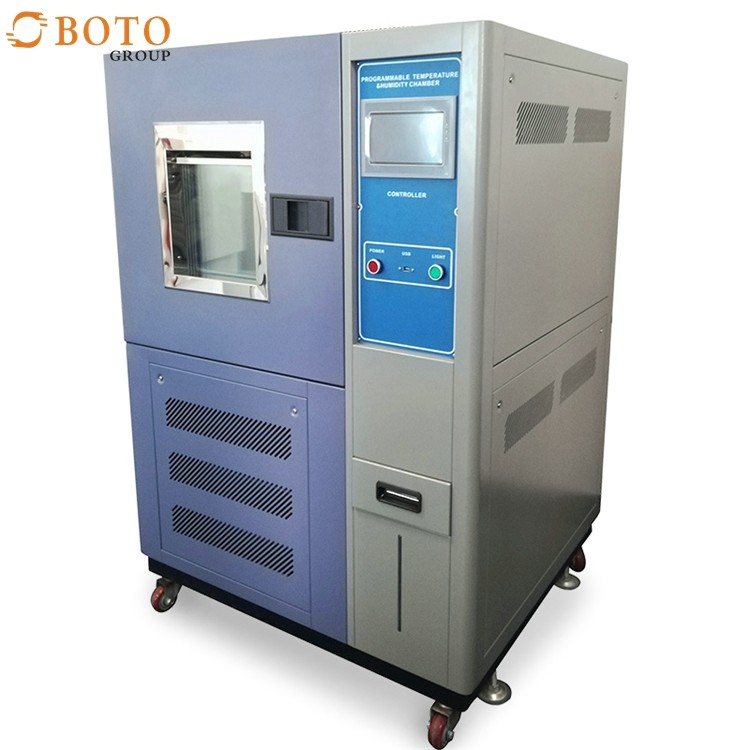

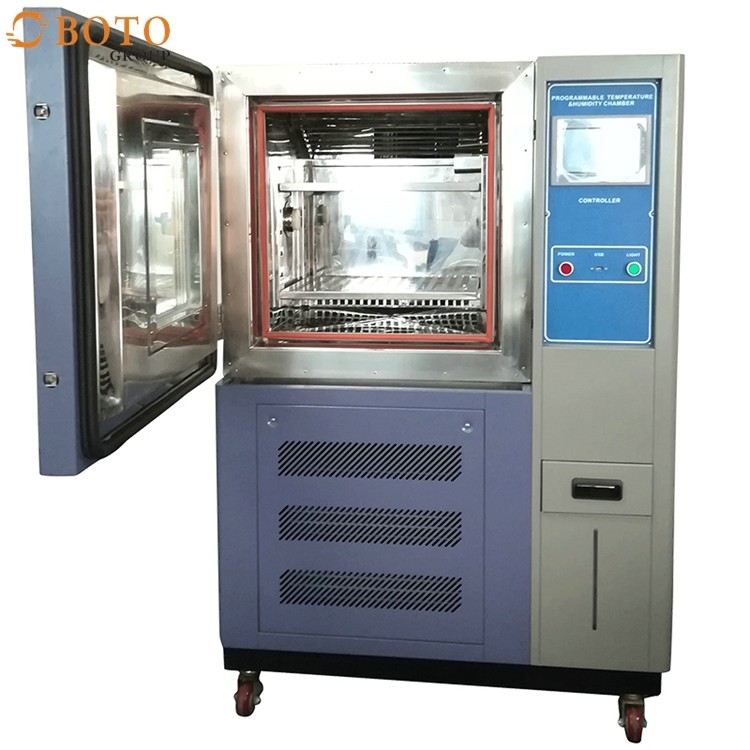

Programmable High Temperature Chamber Test Machine B-T-504(A~E) GB/T10586-2006
Constant temperature and humidity test box is also known as constant temperature and humidity testing machine, constant temperature and humidity test box, programmable alternating humidity and humidity test box, thermostat or constant temperature and humidity box, used to test the performance of materials in various environments of equipment and test the heat resistance, cold resistance, dry resistance, humidity resistance of various materials. Suitable for electronic, electrical, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products testing quality. Conform to the standard: GB/T5170.5-2008, GB/T10586-2006, GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB/T2423.3-2006 test Ca, GB/T2423.4-2008 test Db.

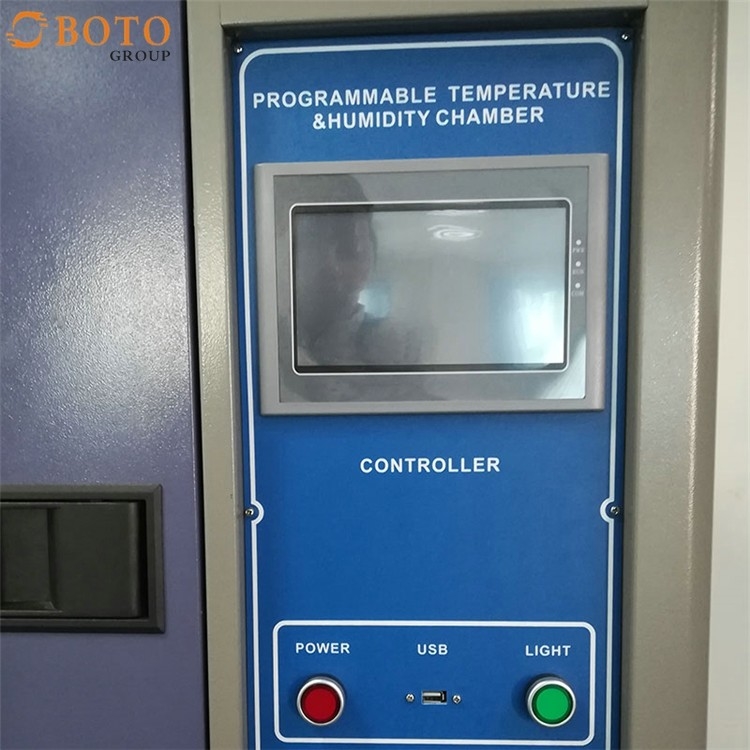

The constant temperature and humidity test chamber is composed of two parts: temperature regulation (heating, cooling) and humidification. Through the rotating fan installed in the top of the box, the air is discharged into the box to achieve gas circulation and balance the temperature and humidity inside the box. The data collected by the built-in temperature and humidity sensor of the box is transmitted to the temperature and humidity controller (micro information processor) for editing and processing, and the temperature and humidity control instructions are issued. Through the air heating unit, condensing pipe and the tank heating and evaporation unit.
Constant temperature and humidity box temperature regulation is through the box built-in temperature sensor, data collection, temperature controller (micro information processor) adjustment, connected to the air heating unit to increase the temperature or adjust the refrigeration solenoid valve to reduce the temperature in the box, in order to achieve the required temperature control. Constant temperature and humidity box humidity regulation is through the body set humidity sensor, data collection, humidity controller (micro information processor) adjustment, connected to the tank heating element, through the evaporation of water in the tank to increase the humidity in the box or adjust the refrigeration solenoid valve to achieve dehumidification, in order to control the required humidity.
Constant temperature and humidity box with multiple protection measures; The temperature system is equipped with an overtemperature protector under the condition that the maximum safe permissible temperature can be set. The air heating element can automatically power off when the rotating fan stops. The humidifying system can stop the power supply when the water level of the humidifying tank decreases. The refrigeration system also stops working as the temperature of the box rises (more than 40℃) or the humidity increases.
Model:
| (Model) | dry heat | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and hot | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(W*H*D) | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20%~98%RH | ||||
| Heat-up time | About3~5℃/min | ||||
| Pull down time | About0.7~1℃/min | ||||
| Temp Fluctudtiont | ±0.5℃ | ||||
| Temp Uniformity | ±1.0℃ | ||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | ||||

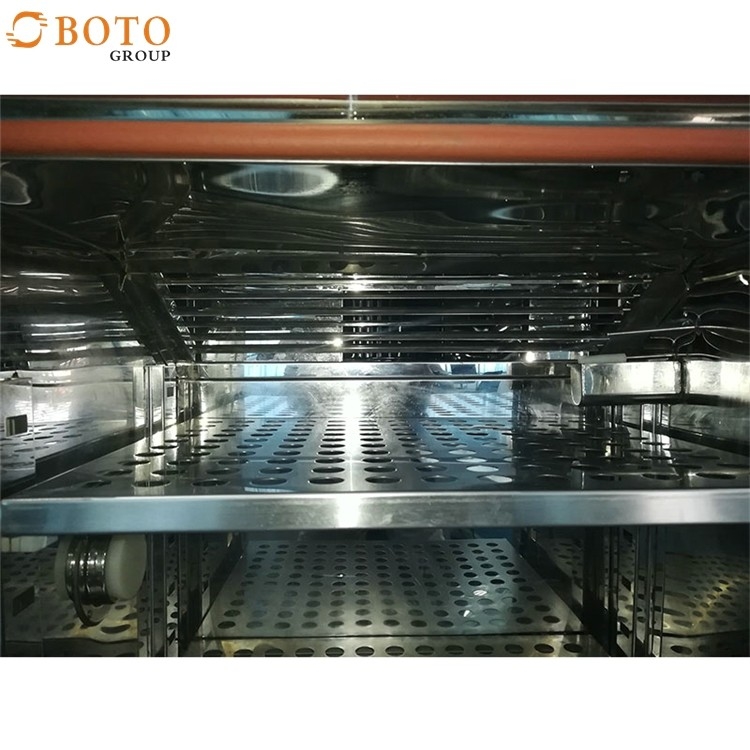

| Interior | SUS#304不锈钢 SUS#304Stainless steel plate | ||||
| Exterior | 冷轧板喷塑或SUS#304不锈钢 Coating or SUS#304Stainless steel plate | ||||
| Power Source | AV:220V/380V 50/60Hz | ||||
| Power(KW) | 2KW~6.5KW | 2.5KW~7KW | 3KW~8KW | 4KW~10KW | |
Each set protected with film, then put into Strong wooden case with English operation manual.
1. In order to avoid machine failure in the constant temperature and humidity test chamber, please provide power supply within the rated voltage range.
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Shipping:
Customer: What about the transportation?
Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.
Customer: What about the after-sale service?
Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.
Customer: What about the delivery date?
Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
