| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-SST-90 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-SST-90 | Internal: | 160x100x50 |
|---|---|---|---|
| External Dim: | 230x130x149 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| PH Value: | Saline Test Method:6.5-7.2/Corrosion Test Method:3.0-3.2 | Power Source: | AC:220V 50Hz/AC:380V 60Hz |
| High Light: | GB/T5170.8 Environmental Test Chambers,ISO Salt Spray Corrosion Test Chamber,Stainless Steel Salt Spray Test Chamber |
||

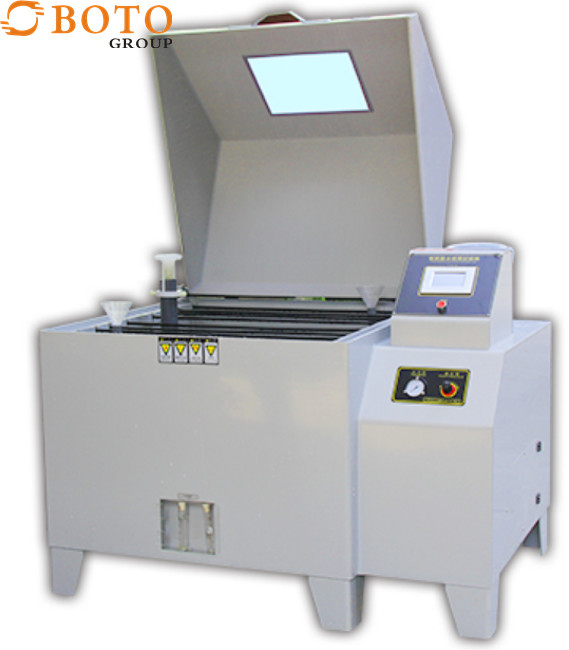

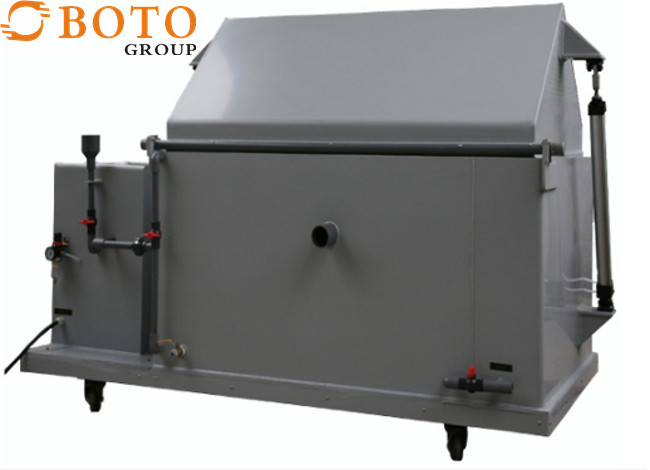

GB / T5170.8 Environmental Test Chambers Salt Spray Corrosion Test Chamber Lab Machine DIN50021 ISO
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.
● Brine in high uniformity, not easy to caking, not blocking atomizer system

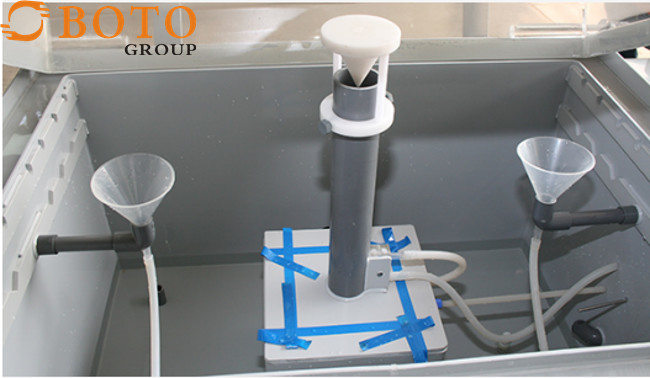

● Quartz nozzle, high temperature resistant, no blocking, easy to clean.
The products comply with :CNS, ASTM, JIS, ISO standard saltwater spray test is aimed at the surface of various materials by coating, electroplating, anode treatment, corrosion prevention oil and other anti-corrosion treatment, test the corrosion resistance of its products.
Standard:
1.GB/T2423.17-2008/IEC 60068-2-11-1981 Salt spray test method
2. ASTM.B117-2009 salt spray test
3.JIS H8502 salt spray test method
4.GB/T10125-2012/ISO 9227-2006 Salt spray test method
5.GB-T5170.8-2008 Inspection method of environmental test equipment for electrical and electronic products-salt spray test
equipment
6.GB-T5170.11-2008 Corrosive gas test equipment inspection method
7.ISO9227 salt spray test
8.GB-T10587-2006 Technical conditions of salt spray test chamber
9.ASTM-B117
10.GB/T2423.18-2013 cyclic salt spray test method
The test room adopts imported PVC polyethylene board (Taiwan Nanya), thickness 8mm, durable temperature at 85℃.
The sealing cover of the test chamber adopts imported acrylic plate with a thickness of 6mm
The reagent replenishment bottle adopts a hidden type with water level detection, which is easy to clean and not easy to break.
The pressure air barrel adopts SUS304# stainless steel high-pressure resistant barrel with the best heat preservation effect.

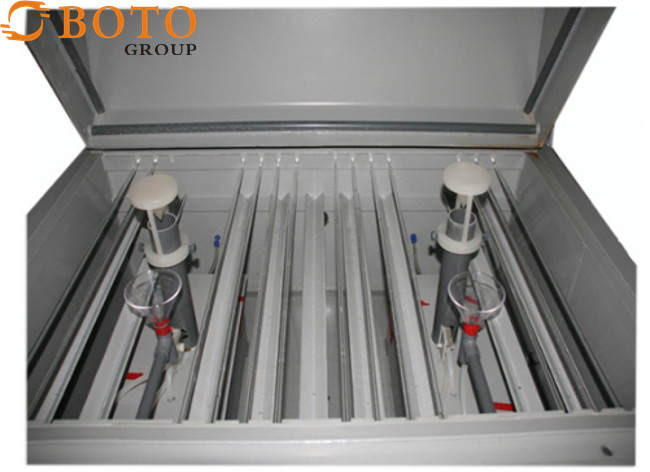

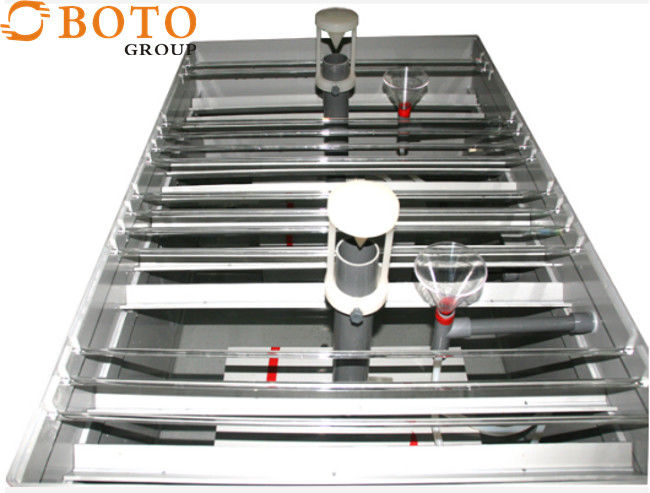

The test material rack adopts a flat indexing rack, which can adjust the angle at will to fall and receive fog on all sides, and
place more samples
The test chamber is sealed by water to ensure that the corrosive gas in the box does not leak
The control box and the test box are integrated, and the left and right structure is easy to operate
The water and electricity separation structure is adopted to effectively prevent water from entering the electrical control box
and damaging the accessories
Model |
B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
Internal Dim(W*H*D) |
60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
External Dim(W*H*D) |
108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
Cabinet Material |
Corrosion-resistant polymer material |
|||||
Laboratory temperature (℃) |
A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
Saturated air barrel temperature(℃) |
35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃ |
|||||
Saturated air pressure (kg/c㎡) |
0.8-2.0±0.01 | |||||
| (ml／80c㎡.h) Salt spray sedimentation rate (ml/80c㎡.h) |
1-2ml/80 cm2.h(Controllable) | |||||
PH value |
Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
|||||
Power Source |
AC:220V 50Hz/AC:380V 60Hz | |||||
