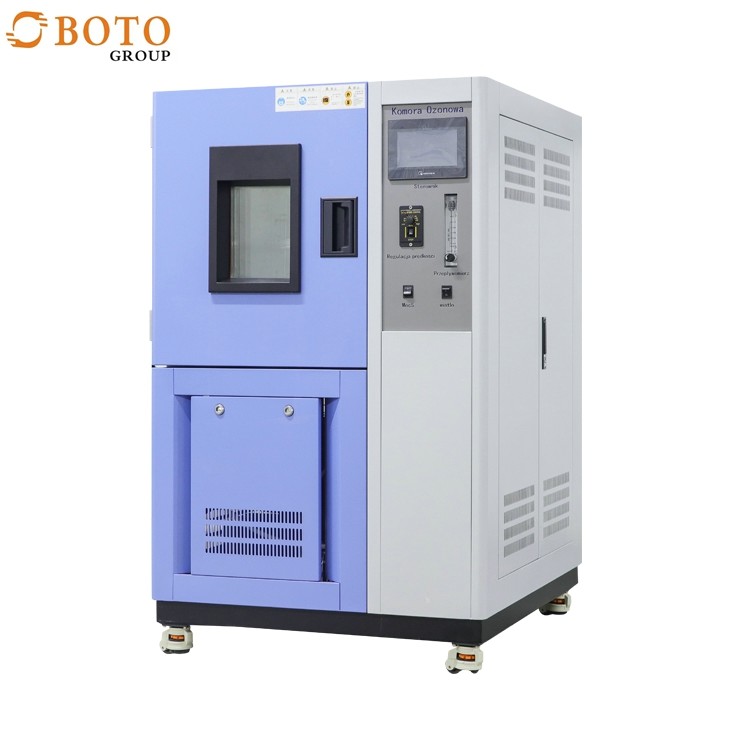

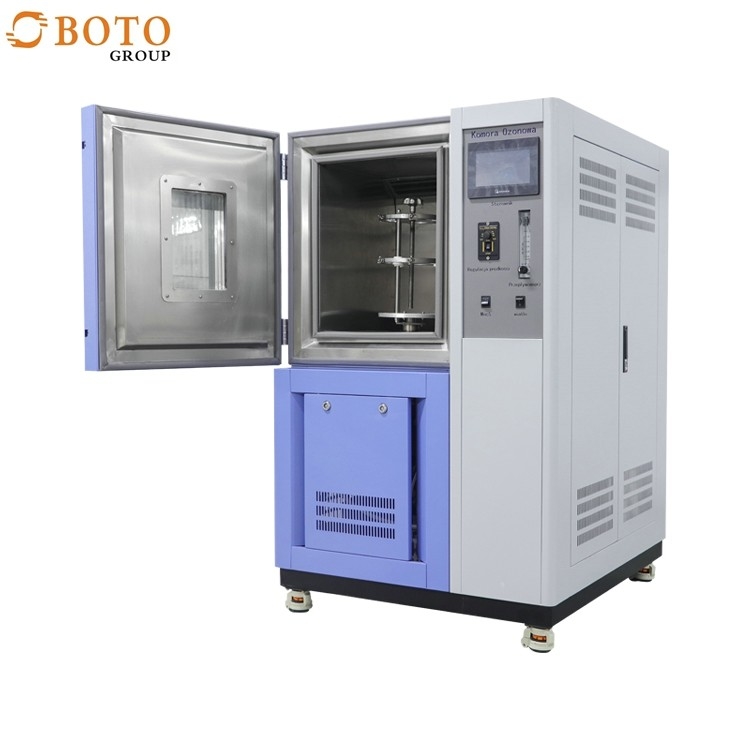

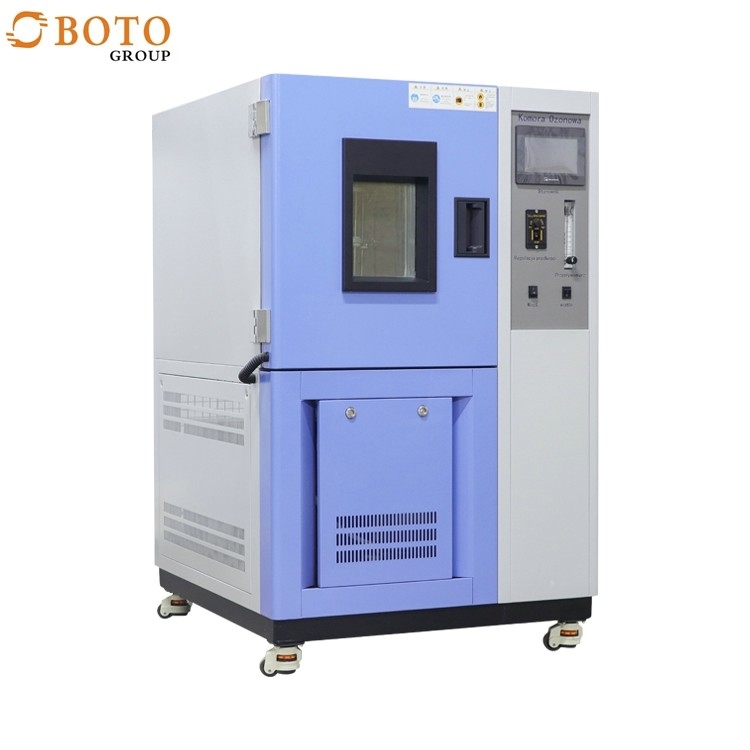

GB/T2951.21-2008 Lab Drying Oven Ozone Aging Test Chamber Environmental Chamber

GB/T2951.21-2008 Lab Drying Oven Ozone Aging Test Chamber Environmental Chamber

Product use:

This ozone aging test equipment can be used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheaths and other products, under static tension or continuous dynamic tension deformation, or intermittent dynamic tension and static tension alternate deformation After exposing to a closed, non-illuminated air containing constant ozone concentration and a constant temperature test box, the sample is tested for a predetermined time, and the degree of cracking or other performance changes on the surface of the sample is evaluated to assess the resistance of the rubber Ozone aging performance. With advanced processing equipment, superb manufacturing technology, strict management system, strong technical strength and good after-sales service, it is the preferred supplier of major scientific research institutes, famous enterprises and universities.

GB/T7762-2003 static test method and GB/T136421992 dynamic test method; ASTM D-3041,ASTM D-1171,ASTM D-1149

Technical parameters:

1. Temperature range: 0~70, RT+10~70

2. Humidity range: 40%~98%R.H, 65%~98%R.H

3. Temperature fluctuation degree: ±0.5

4. Temperature uniformity: 2

5. Temperature deviation: ±1.5

6.Humidity fluctuation: +2, -3%R.H

7. Heating rate: 0.7~1.0/min

8. Cooling rate: normal temperature drops to 10 20min / unlimited

9. Ozone concentration: 10~1000pphm

10. Gas flow rate: 12~16mm/S

11. Ozone sample rack: static and dynamic tensile test sample rack (specify when ordering)

12. Sample rack rotation speed: 360 degree rotating sample rack (rotation speed 1r/min)

13. Time setting range: 0~9999 hours

14. Power requirements: AC380 (±10%) V/50HZ three-phase five-wire system

reference standard:

GB/T7762-2003 Vulcanized rubber or thermoplastic rubber - static tensile test method for ozone cracking resistance;

GB/T2951.21-2008 General test methods for insulating and sheathing materials for cables,

GB/T 11206-2009 rubber aging test surface cracking method;

And test methods specified in other relevant standards.

Main material of equipment:

1, the shell cold plate spray/inner stainless steel.

2, AI digital display intelligent program control regulator. 3, gas flowmeter, precise control of gas flow at all levels. Equipped with "QUA" non-dispersive ultraviolet ozone detector (the most reliable and popular method for ozone detection in the world).

4. Beer-lambert Principle measurement application software (internationally recognized).

5, equipped with gas purifier, constant temperature tank, active carbon absorption and silica gel drying tower.

6, the ozone air flow is parallel to the sample.

7, optional remote monitoring software (available PC print test data).

8. Interfaces for classical chemical testing of ozone concentration are provided.

9, the test box is provided with a regulated power supply.
