UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate

Basic Information
Place of Origin: Shanghai China
Brand Name: BOTO
Certification: IEC ISO
Model Number: B-ZW
Minimum Order Quantity: 1 set
Price: 900USD
Packaging Details: wooden case
Delivery Time: 15days
Supply Ability: 1000pcs/year
UV Irradiance Accuracy: ±5% Temperature Range: RT+10℃-70℃
Humidity Uniformity: ±3.5%RH Temperature Uniformity: ±2℃
Humidity Fluctuation: ±2.5%RH Humidity Range: 20-95%RH
Highlight:

UV Accelerated Environment Test Chamber

,

UV Aging Resistance Test Chamber

UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate

1. Application of Laboratory ASTM G53-77 UV Test Chamber

Laboratory ASTM G53-77 UV Test Chamber is equipped with fluorescent UV lamp which can simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light, moisture and temperature at controlled. It simulates dew and rain with condensing humidity and/or water spray.



2. Standard Features of Laboratory ASTM G53-77 UV Test Chamber



♦ Fluorescent UV lamps (8) - 40 W
♦ Black Panel Temperature (BPT) at controlled, BPT 30~70℃
♦ Temperature from Ambient to 90℃
♦ Spraying water, automatic water supply
♦ Water reservoir 50 Liter
♦ Can hold 48 pieces of specimens
♦ Programmable color display touch screen controller
♦ Safety protection system
♦ Easy to mount samples on the holders
♦ CE and RoHS compliance

3.Main Technical Parameter of Laboratory ASTM G53-77 UV Test Chamber
Model UV-260 UV-SI-260
Internal dimensions (mm) 450*1170*500 450*1170*500
Overall dimensions (mm) 680*1300*1500 680*1300*1500
Capacity of test specimens 48 pieces Individual specimen size is 75mm * 150mm 48 pieces Individual specimen size is 75mm *150mm
Controller Programmable color display touch screen controller Programmable color display touch screen controller
Temperature range Ambient~90℃ ±2℃ Ambient~90℃ ±2℃
Humidity range ≥95%R.H ±2%R.H ≥95%R.H ±2%R.H
Black Panel Temperature BPT 30~80℃ BPT 30~80℃
Irradiation Source Fluorescent UV lamps (8) - 40 W Fluorescent UV lamps (8) - 40 W
UV wavelength 290 ~ 400nm 290 ~ 400nm
Irradiance Control N/A 0.3 ~ 20 W/m2(340 nm / 313 nm)
Water Spray Spraying water Spraying water
Distance of Specimen and lamp 50mm 50mm
Nominal power 5000W 5500W
Power Supply 380V 50HZ 380V 50HZ

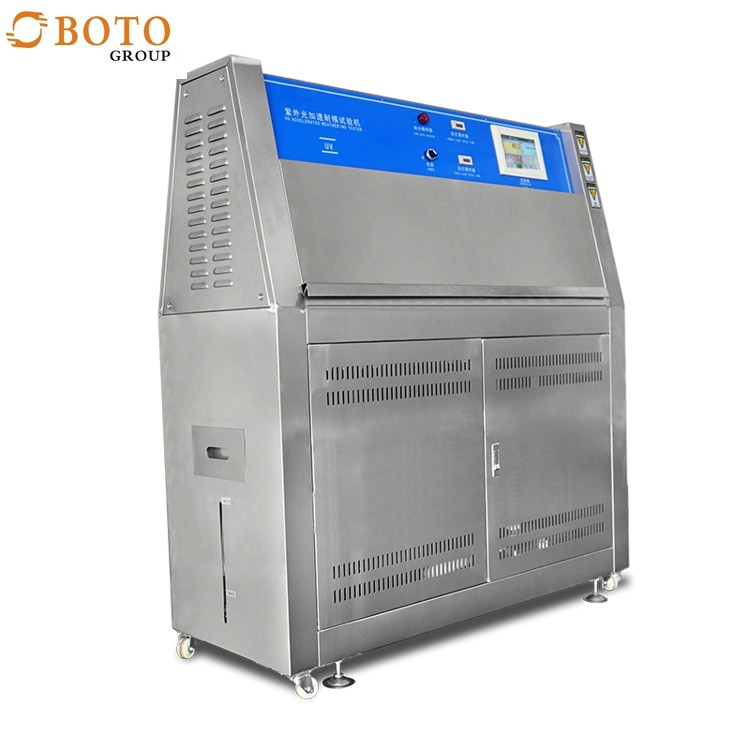

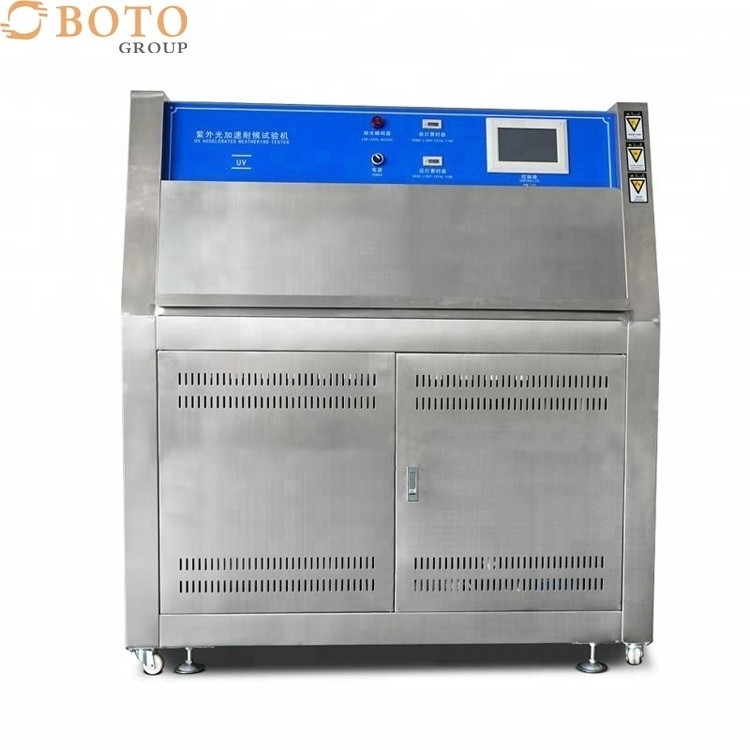

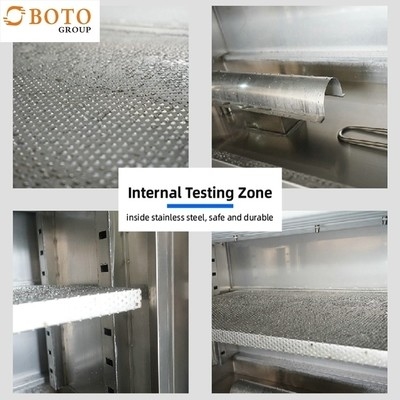

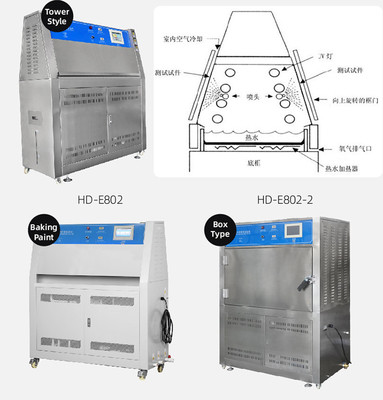

4.Detail Image for Laboratory ASTM G53-77 UV Test Chamber

UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 0UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 1UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 2UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 3



Company Information

♦ We provide test chamber, we provide test solution
♦ We manufacture standard and custom climatic chambers
♦ We can provide effective solutions to any test requests


Warranty & Service - 3 Years Warranty, Lifelong Follow-up Services.
♦ 3 Years Warranty, Lifelong Follow-up Services.
♦ Training how to install, operate and maintain the machine.
♦ Provide calibration service for our customers
♦ Response within 24 hours once got questions from customers.
♦ Send spare parts within 2 days after got notice.
♦ Engineers available to service on site to install and commissioning overseas



Company introduction

BOTO Testing equipment Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 4

The company mainly produces various special equipment for material testing industry, such as simulated environmental testing machines, plastic and rubber testing machines, etc. The production base is located in Dongguan, Guangdong, China, a major manufacturing city in China. In order to better serve customers, reduce costs and deliver goods ahead of schedule, the company established an office in Kunshan, Jiangsu in 2005, responsible for marketing and services in East China.

UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 5

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 6

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 7UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 8UV Accelerated Environment Test Chamber UV Aging Resistance Test 304 Stainless Steel Plate 9

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
