Chemical Hardware ROHS Checkweigher Machine Metal Detector

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: CE ISO
Model Number: BT1501
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: PLY-WOODEN CASE
Payment Terms: Western Union, T/T, D/P, MoneyGram
Supply Ability: 100000Set/month
Type:: Checkweigher With Metal Detector Operation Display:: 8 Inches Touch Screen
Product Name:: BOTO Pection Combine Metal Detector And Check Wei Food In Item Memory:: 100 Products
Certificate:: CE ROHS Belt Width:: 150mm Check Weigher Metal Detector
Display:: LCD Display Check Weigher Metal Detector Power:: 100-240V/50HZ
Usage:: Pharmaceutical, Food, Toys, Hardware, Chemical And Other Industries. Function:: Strong Self Diagnosis Function
High Light:

ROHS Checkweigher Machine

,

DSP Checkweigher Machine

,

checkweigher metal detector

Check Weigher Metal Detector Conveyor Check Weigher Metal Detector Weight Checkweigher Machine





FEATURES

Strong stainless steel structure; Water proof design.

High accurate load cell; Based on advanced DSP technology.

Automatic weighing compensation and zero tracking.

100 products preset; easy to edit and recall.

Quickly product shift and speed recall.

2000 sorting records; Printer output ready.

Touch screen; friendly operation interface.



PURPOSE

Online weight check for packed food.

Step for food quality control





Application:

Detection of food processing, food additives, condiment, clothing, toys, rubber industry products in metal
impurities,ensureproduct without metal pollution, provide reliable quality guarantee.Detection of plastic, textile, wood, mining industries in the material metal impurity, protect the online equipment, reduce downtime, maintenance time and cost, improve work efficiency.



Features:



1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to
their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8.Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.



Specification:

Detection width : 30-80 cm, Customized
Detection height: 8-50cm Customized
Detection sensitivity: See below table
Alarm mode: The buzzer alarm, the motor automatically stop
Transfer speed: 25 meter / min or you can select adjust speed
Power: 100-265VAC, 50-60Hz (According to customer request)
Size: (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system Option



The reality detector sensitivity depends on the products and operating environment . Please kindly see below:



Detected Height(mm) 80 100 150 200 250 300 350
Belt Width(mm) 250 250 400 400 400 400 400
Belt length 1500



Detector sensitivity(mm)

Fe 0.8 Fe 1.0 Fe 1.2 Fe 1.5 Fe 2.0 Fe 2.5 Fe 3.0
SUS 1.0 SUS 2.0 SUS 2.5 SUS 2.5 SUS 3.0 SUS 3.5 SUS 4.0
N-Fe 1.0 N-Fe 1.5 N-Fe 2.0 N-Fe 2.0 N-Fe 2.5 N-Fe 3.0 N-Fe 3.5
Speed of belt

25M/min (Fixed speed) ;

If you need adjust 5-40 M/min , please inform us before order

Load ability 20KG
Count 100
Warning method Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways when has auto-reject system ,belt continue and rejecting the goods
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%

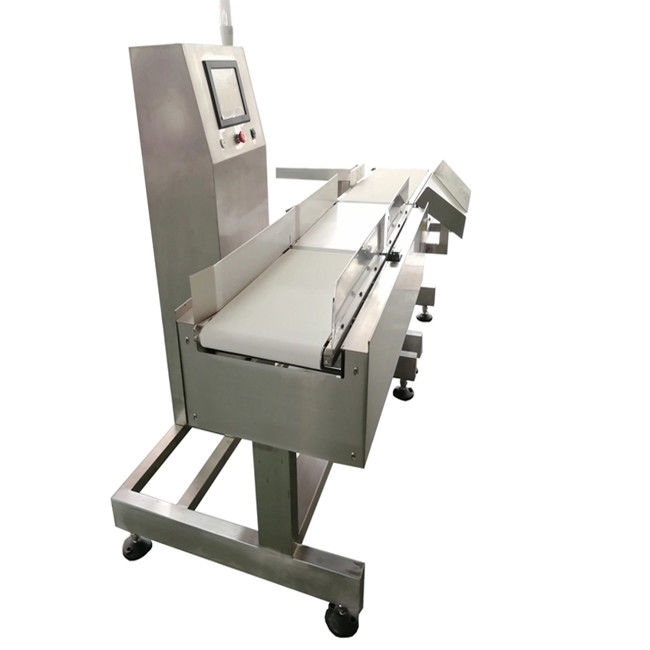

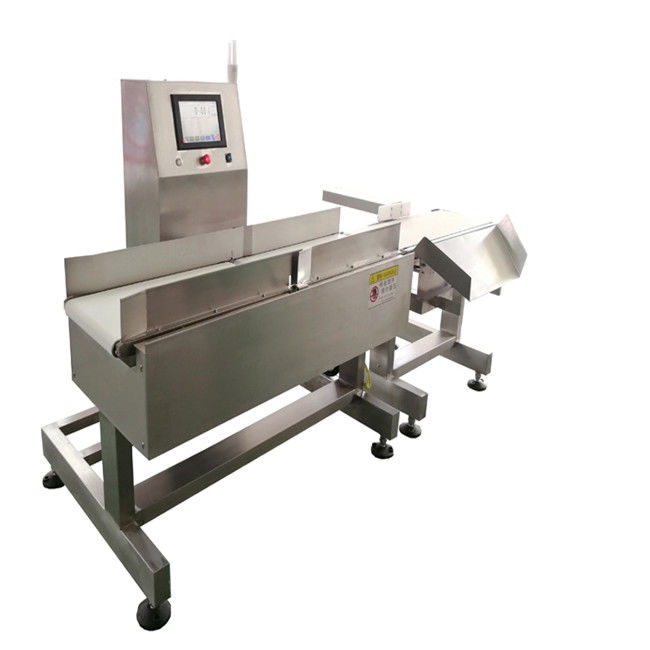

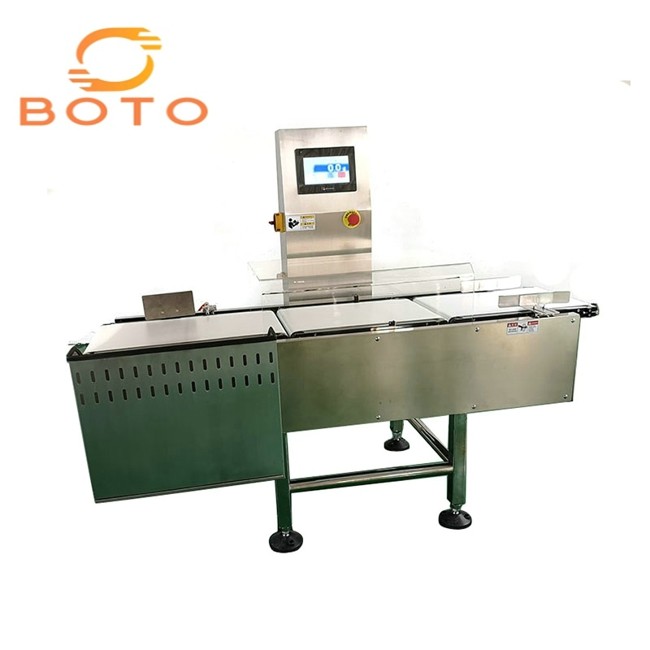

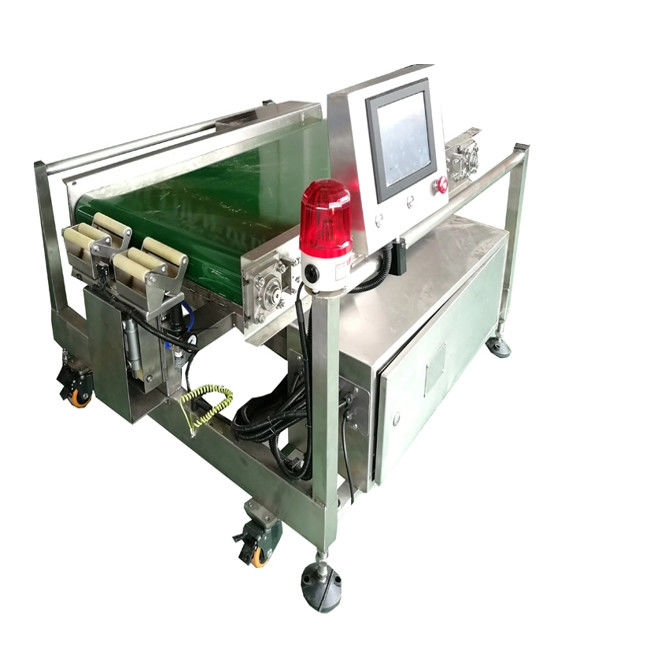

Chemical Hardware ROHS Checkweigher Machine Metal Detector 0





Chemical Hardware ROHS Checkweigher Machine Metal Detector 1





Our Services



World Class Service and Support!

The quick, timely response to your service within 12 hours needs is our service department mission. Our in-depth staff includes qualified field service and system engineers-ready to resolve your problem quickly and efficiently. We make every attempt to work around your operational schedule; being flexible to get the work accomplished in the limited “downtime” that is available.

OEM services are available with us, our professional designer would make your private idea into being.

We will protect of your sales area, ideas of design and all your private information.
Delivery by air or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!

Packaging & Shipping



Strong Plywood Case special designed for export packing to avoid any broken during the shipping.

Shipping: By sea or by air.

FAQ



1. How to solve the problems during using the equipments?

We have special after-sales team ready to solve the problems for the customers at the first time.

Customers can descript the problems by email to us or online chat, like Skype, Whats app. Then we will supply the solution soon. To make the work more effective, please also supply the problem picture or take a short video for our reference. This is the fast way to solve the problems. We also have distributors and also we can send our experienced engineers overseas if needed.



2. Warranty period and spare parts supply?

One year and lifetime maintenance!

During the first year, if any parts broken not occurred by human, we will supply the new replacement parts for free. After first year, we still supply the spare parts all of the time for the customers.



Our spare parts go through rigid quality control inspections before being released to a customer. After a machine is up and running, BOTO is available for replacement parts service. Most parts are stocked in-house and if a part is needed from an outside vendor, BOTO will do it’s best to receive that part in a timely manner.



3. How to install new machines.

Normally, our equipments don’t need the engineers to visit customer’s factory to install. We will supply detailed operation manual packed together with the goods. If needed, we can also supply installation video.



Also we can arrange our engineers to customer’s factory to install it. In this case, the customer should bear the round-tickets and Accommodation fees and daily labor costs.
