Home ProductsTemperature Humidity Test ChamberTwo-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics

Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics

Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics
Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: B-TCT-401
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/mouth
Contact Now
Volum: 401L Power: 2500W
Usage: Universal Testing Machine,Process Testing Machine,Temperature Humidity Test Chamber For Resisting Heat Temperature Range: -40 ~ +150℃
Material: SUS 304#Stainless Steel Color: White,Gray And White

Two-Box Thermal Shock Test Chamber

Description:Two-Box Thermal Shock Test Chamber is designed for rapid temperature change testing, featuring a high-precision temperature control system with a range from -60°C to 200°C and a recovery time within 3 minutes. Constructed with an SUS#304 stainless steel interior and a durable coated or stainless steel exterior, it supports programmable cycle times and automatic alarm functions. Multi-level safety protections ensure reliable operation. Widely used in defense, aerospace, automotive, electronics, and industrial equipment manufacturing for product reliability testing and quality assurance.


Implementation and meeting standards:
GB/T 10592-2008 :high and low temperature test chamber technical conditions
GB/T 2423.22-2008 :temperature change rate test method
GJB 150.3A-2009 :high temperature test method
GJB 150.4A-2009 :low temperature test method
GJB 150.5A-2009 :temperature impact test method
GJB 360B-2009:test methods for electronic and electrical components 107 requirements for temperature shock tests
GB/T 5170.2-2008:test method for environmental test equipment of electric and
electronic products Temperature test equipment

Feature:

Product nameTwo box type temperature impact test box
Product modelBT-2TS100BT-2TS180BT-2TS300BT-2TS1000
Nominal volumeUnit/L1001803001000
Inner sizeWidth × depth × height (mm)500×500×400600×600×500700×700×6001000×1000×1000
External sizeWidth × depth × height (mm)1020×1200×18501200×1500×19001350×1600×19802450×1800×1980
Basket sizeWidth × depth × height (mm)350×350×250450×450×350550×550×450800×800×800
Operating modeA.vertical basket B. horizontal basket type

Performance

index

temperature rangeA,-75℃~200℃ B,-90℃~200℃ C,-120℃~200℃
Impact rangeA,-55℃~160℃ B,-75℃~160℃ C,-85℃~160℃
Temperature fluctuation±0.5℃
Temperature uniformity≤±2.0℃
Temperature deviation≤±2.0℃
heating rateRT~+200℃,≤40Min
Cooling rateA,+25℃~-75℃,≤60Min;B,+25℃~-90℃,≤80Min;C,+25℃~-90℃,≤100Min;
Temperature conversion time≤15s
Temperature recovery time≤5Min
Exposure conditionsHigh temperature exposure 30Mins; Low temperature exposure 30Mins
Refrigeration methodCompressor refrigeration
Cooling methodAir-cooled/water-cooled
Main componentsControl SystemSiemens programmable controller + touch screen + independent development program
Heating systemFully independent system, high efficiency stainless steel finned tube heater
Cooling SystemImporter-type scroll compressor
Circulatory systemTemperature and low noise motor, stainless steel centrifugal impeller
Main materialsCarton materialHigh-quality carbon steel plate, phosphating electrostatic spray treatment
Inner box materialInternational standard SUS304# stainless steel mirror treatment
Insulation materialHard flame retardant polyurethane foam
Sealing materialHigh and low temperature environment-friendly silicone rubber seal
voltage380±10% VAC,50Hz;3L+N+G
Communication InterfaceRS232 communication interface, USB data interface
Standard configuration1 sample holder, 1 test lead hole, 1 silicone plug
Optional accessoriesRecorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge
safety devicesLeakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection
Environmental requirements

Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around;
Water supply temperature: ≤ 30 °C, water pressure: 0.1 ~ 0.3MPa, water quality meets industrial water standards;

Note:
1. temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;
2.according to the specific requirements of users customized non-standard high and low temperature impact test box;
3.This technical information is subject to change without notice.


Product detail:

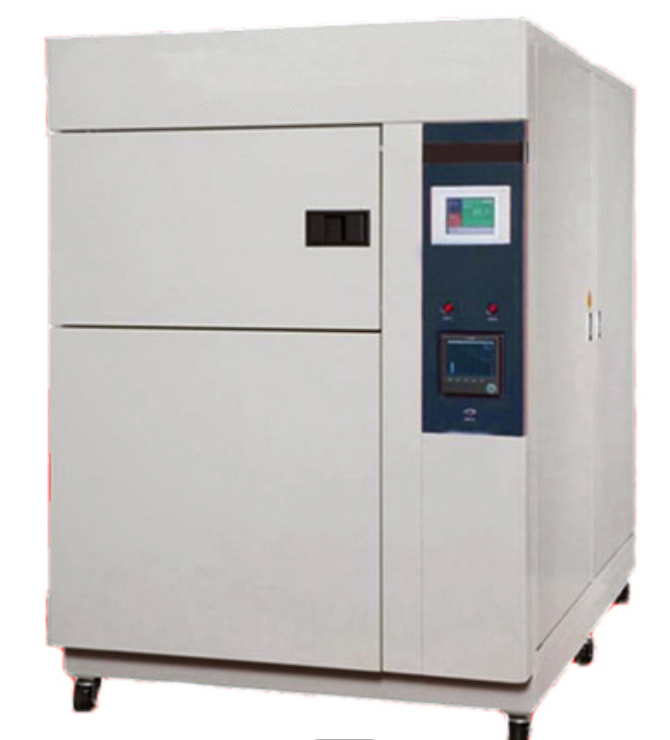

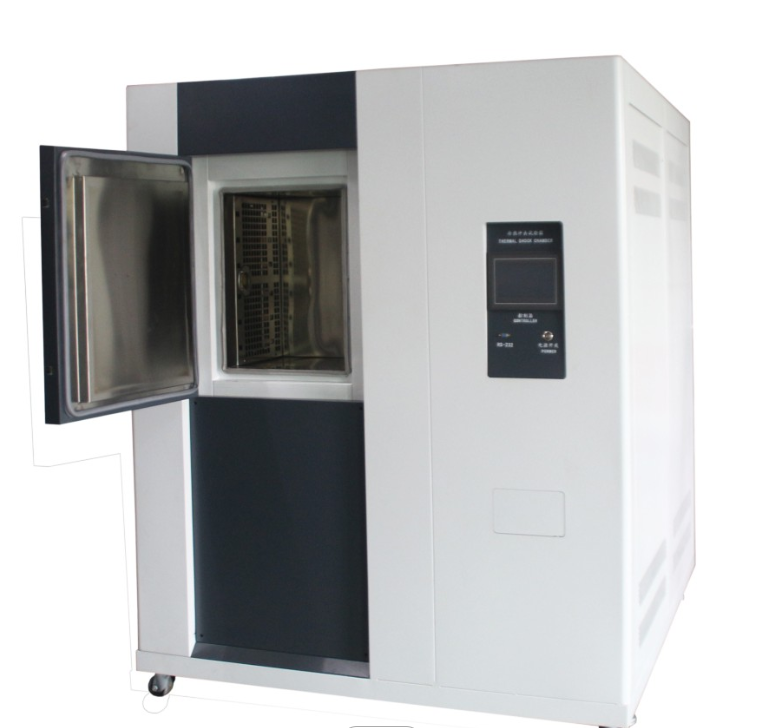

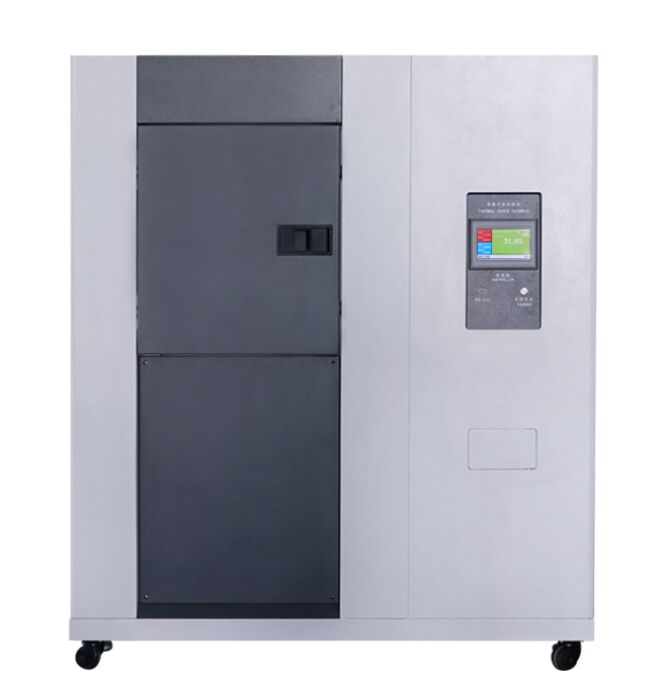

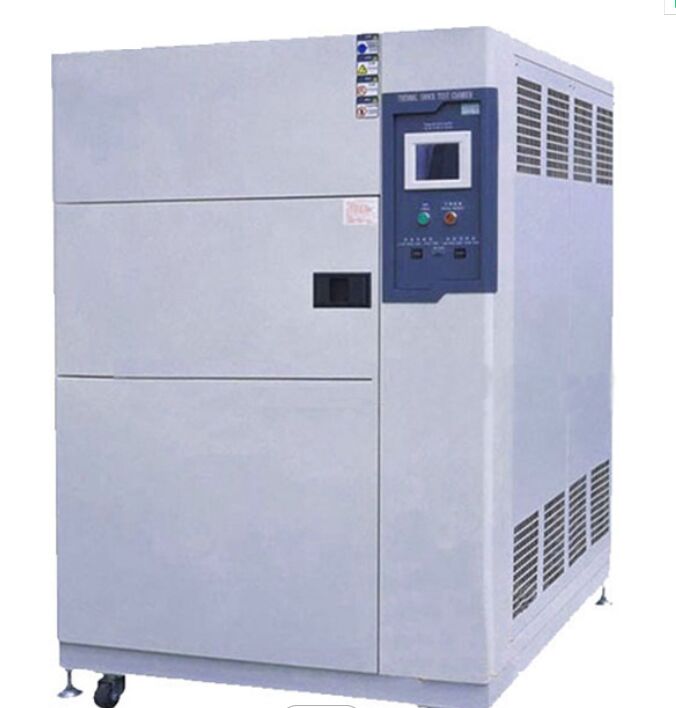

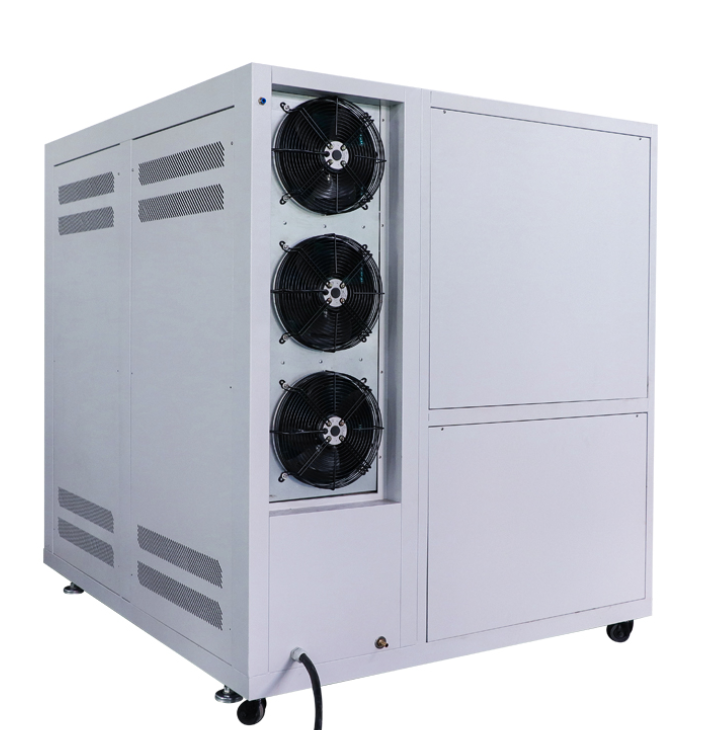

Two-Box Thermal Shock Test Chamber – SUS And 304 Interior, -60°C To 200°C Range, Multi-Safety Protection For Defense, Aerospace, Electronics 0

Services:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
